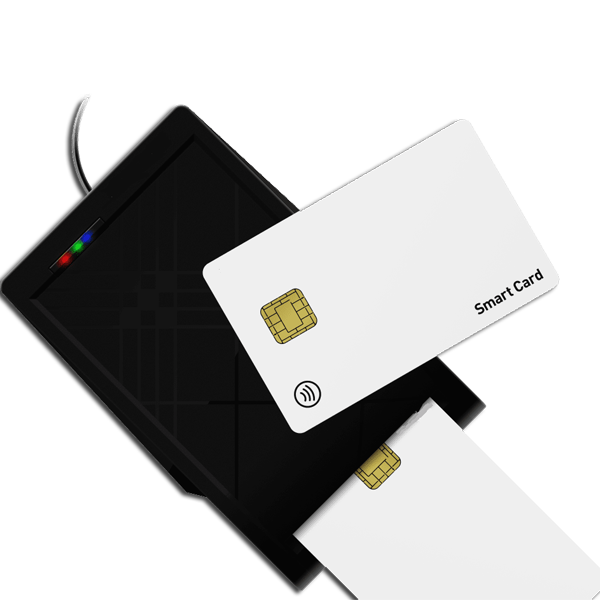

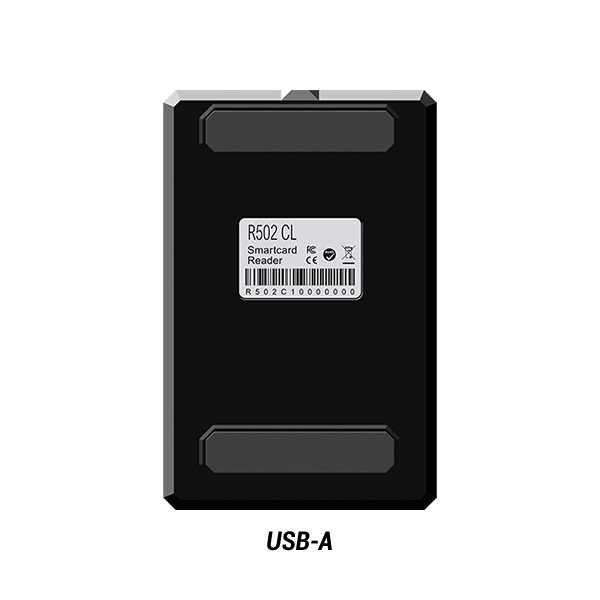

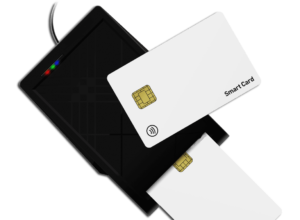

R502CL USB-A Contactless Smartcard Reader

R502CL USB-A Contactless Smartcard Reader – CCID USB-A Contactless Smart Card Reader for Secure Authentication

The R502CL USB-A Contactless Smartcard Reader is a high-performance USB CCID smart card reader designed for secure authentication, electronic payments, access control, and enterprise system integration. This reader supports ISO/IEC 14443 Type A & B, MIFARE, and Felica® contactless smart cards, making it suitable for high-security and high-volume applications.

With a built-in antenna, 13.56 MHz operating frequency, and high-speed data transfer up to 848 kbps, the R502-CL ensures fast, reliable, and secure card transactions across multiple platforms and industries.

R502CL USB-A Contactless Smartcard Reader, Broad Compatibility, and Lightning Fast. Support ISO 14443 Type A and Type B, Mifare© card, Felica® card, with baud rate 106kbps to 6.8 Mbps.

Features of R502CL USB-A Contactless Smartcard Reader:

• USB 2.0 Full Speed Device Compliant with PC/SC, CCID Standards
• Firmware supports upgrading in encryption
• Reader ID is configurable
• Compliant with EMV Level 1
• Build-in antenna
• Supports contactless smart cards compliant with ISO 14443 type A and B
• Support Mifare classic and Mifare Ultrglight C
• Contactless function can be turned off in specific environment
• Support Windows 2000+/Linux/Mac OS X

Other Features of R502CL USB-A Contactless Smartcard Reader

• Build-in antenna
• ISO/IEC 14443 (A and B) standard
• Mifare S50/S70/Ultralight C cards
• Card clock Frequency: 13.56MHz
• 106kbps, 212kbps, 424kbps, 848kbps
• communication speed (Depends on card)
• 0.3 second for read/write Mifare© card CSN
• Open UID(User ID) function
• Support Extended APDU
• Encrypted firmware upgrade
• Windows 2000 / XP / 2003 / Vista / 2008 / 7 / 8,Linux Kernel 2.6+, macOS X, Android(OTG)

---

More Features of the Contactless Smart Card Reader

• CCID-compliant USB 2.0 interface (plug-and-play)
• Supports ISO/IEC 14443 Type A & Type B standards
• Compatible with MIFARE S50, S70, Ultralight C cards
• Felica® protocol support
• High-speed communication: 106 / 212 / 424 / 848 kbps
• Fast card read/write (≈0.3 seconds for MIFARE CSN)
• Open UID (User ID) functionality
• Extended APDU command support
• Built-in LED status indicators (Blue / Red)
• Firmware encryption with anti-reverse analysis
• Short-circuit, thermal, and over-voltage protection

---

Security & Reliability

The R502CL USB-A Contactless Smartcard Reader is engineered for high-security environments:

• Encrypted firmware upgrade mechanism
• Firmware cannot be read or reverse-engineered
• Electrostatic discharge protection
• No sensitive user data stored on the device
• High-security chipset architecture
• MTBF: 500,000 hours
• Designed for continuous operation (48+ hours)
• Hardware lifespan: minimum 5 years

---

Supported Operating Systems

This R502CL USB-A Contactless Smartcard Reader is fully compatible with:

• Windows (2000 and above)
• Linux (Kernel 2.6+)
• macOS X
• UNIX
• Android (OTG)

---

Applications & Use Cases

The R502CL USB-A Contactless Smartcard Reader is widely used in:

• Secure authentication systems
• E-banking and financial institutions
• E-government and digital identity projects
• Access control and attendance systems
• Public transportation and ticketing
• Parking management systems
• E-commerce and online payment terminals
• Network access control
• Digital signature and PKI solutions

---

Technical Specifications

Specification	Details
Interface	USB 2.0 CCID (12 Mbps)
Operating Frequency	13.56 MHz
Card Standards	ISO 14443 A/B, MIFARE, Felica®, EMV Level 1
Communication Speed	Up to 848 kbps
Power Supply	USB 5V DC
Working Current	170 mA (idle), 230 mA (with card)
Dimensions	120 × 80 × 25.6 mm
Weight	80 g
Material	ABS + PC
Operating Temperature	0°C to 60°C
Storage Temperature	-20°C to 85°C
Protection Rating	IP54 (dust-proof)

---

Certifications & Standards Compliance

• CE, FCC, RoHS
• EMV Level 1
• USB 2.0 & CCID Standard
• PC/SC Standard
• ISO 14443
• Felica® & MIFARE® Standards

---

Why Choose This R502CL USB-A Contactless Smartcard Reader CCID?

• Enterprise-grade security and reliability
• Broad OS and card compatibility
• Ideal for authentication, payment, and access control
• Long lifecycle and industrial-grade durability
• Trusted smart card technology from Aftindia’s Feitian Technologies
