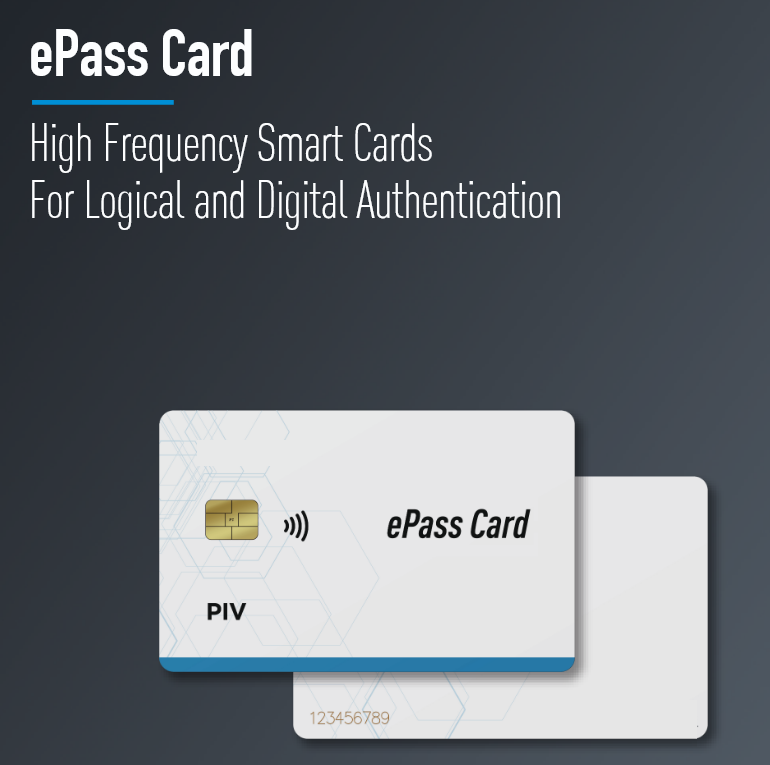

ePass Card – The All-in-One ePass Smart Cards

ePass Card for FIDO2, U2F, PIV, Mifare Desfire, PKI, Physical Access Control Authentication

High Frequency ePass Smart Cards For Logical and Digital Authentication

Aftindia ePass Card is a secure, multi-application smart card designed for enterprise-level identity and access management. It combines FIDO authentication, PKI smart card capabilities, and contactless ePass access control card technologies such as Mifare Desfire in one tamper-proof device.

✅ Why ePass Card?

As organizations adopt Zero Trust architecture and require multi-factor authentication (MFA), the ePass-Card offers the perfect convergence of:

• Logical access (web login, system login via ePass FIDO2 security card or ePass PKI smart card),
• Physical access (doors, smart gates with Mifare Desfire),
• Contact and contactless operations for versatile deployment.

---

Key Benefits of ePass Card Smart Authentication

ePass Cards protocols including FIDO 2, U2F, PIV, Mifare and Desfire, Smart Card for Logical and Digital Authentication

• ✅ FIDO 2 Smart Card Authentication for passwordless and phishing-resistant login.
• ✅ PKI and PIV-Compatible Smart Card for digital signature, certificate-based login, and encrypted email.
• ✅ Dual Interface Smart Card (Contact + NFC) using ISO/IEC 7816 and ISO 14443A standards.
• ✅ Java Card™ & GlobalPlatform Compliant for secure applets and custom deployments.
• ✅ High-Security Certifications: CC EAL5+, CC EAL6+, FIPS 140-2 Level 3 for trusted environments.
• ✅ Multiple Secure Protocols in One Card: FIDO 2, U2F, PIV, ePass2003, Mifare Classic, Desfire EV2.
• ✅ Customizable Memory Profiles: NVM sizes from 26K to 79K, optimized for high-performance use cases.

---

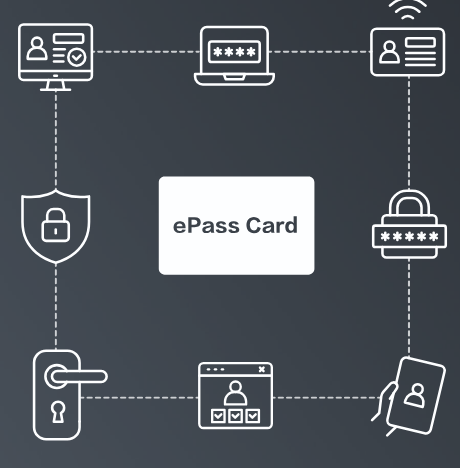

🛡️ Key Benefits of ePass Card

• Combine FIDO, PKI and physical access
• protocol in a single card
• Strong authentication
• Increased interoperability

---

🧩 Advanced Technical Features

Feature	Description
Chipsets	NXP P71, Infineon SLE77/SLE78, TMC THD89
Protocols Supported	FIDO 2, U2F, PIV (PKI/ePass2003), Mifare Classic 1K, Desfire EV2 4K
Interface	Dual (Contact + NFC/Contactless)
Cryptography	RSA 2048/4096, ECC, AES, SHA-256/384/512, 3DES
Java Card™ Version	2.2.1 and 3.0.4
Certifications	CC EAL5+/EAL6+, FIPS 140-2 Level 3
User Memory	Up to 79KB NVM, 3.8KB RAM
Applications	Secure login, digital signature, encrypted communication, Access Control Authentication, badge-based ID

🏢 Ideal for Enterprise & Government Applications

The ePass Authentication Card is suited for:

• ✅ Corporate Smart ID Cards
• ✅ Two-Factor Authentication (2FA) Tokens
• ✅ Government PIV Identity Cards
• ✅ FIDO 2 Login for Microsoft Azure AD, Google Workspace, Okta, etc.
• ✅ Physical Access Systems with Mifare/Desfire Readers
• ✅ Digital Certificate & Document Signing Workflows

---

🔄 Compatibility Across Systems

• ✔ Windows Smart Card Login
• ✔ FIDO 2 WebAuthn-compatible Browsers & Services
• ✔ PKCS#11 / CSP / minidriver support for PKI environments
• ✔ Enterprise Identity Management Platforms like Azure, DUO, ForgeRock, Ping Identity, and ESET Secure Authentication.

---

🔧 Available ePass Smart Card Models

Model	FIDO 2	PKI / PIV	Mifare / Desfire	Memory	Certification
B38CR/DF	✅	✅	✅ Desfire EV2	40K / 3K	CC EAL6+ / FIPS 140-2
B38CR/PF	✅	✅	❌	79K / 3.8K	CC EAL6+
A40CR	❌	✅ (ePass2003)	❌	32K / 1.4K	CC EAL6+
H19CR/MF	❌	❌	✅ Mifare	58K / 2.4K	CC EAL5+

🔐 ePass Smart Cards – Product Comparison Table

B38CR/DF	NXP P71	28K / 2.9K	JC 2.2.1 / GP 3.0.4	CC EAL6+	RSA 2048/4096, AES, SHA-1/256/384/512, ECC, 3DES	ISO 7816, ISO 14443	FIDO, PIV
B38CR/DP	NXP P71	40K / 3K	JC 2.1.1 / GP 3.0.4	CC EAL5+ / FIPS 140-2 Level 3	RSA 2048/4096, AES, SHA-1/256/384/512, ECC, 3DES	ISO 7816, ISO 14443	–
B38CR/PF	NXP P71	79K / 3.8K	JC 2.1.1 / GP 3.0.4	CC EAL5+	RSA 2048/4096, AES, SHA-1/256/384/512, ECC, 3DES	ISO 7816, ISO 14443	–
A40CR/2003	Infineon SLE77	32K / 1.4K	JC 2.1.1 / GP 3.0.4	CC EAL6+	RSA 2048/4096, AES, SHA-1/256/384/512, ECC, 3DES	ISO 7816, ISO 14443	Mifare Classic 1K, Desfire EV2 4K
A22CR/PF	Infineon SLE78	26K / 3K	JC 2.1.1 / GP 3.0.4	CC EAL5+ / FIPS 140-2 Level 3	RSA 2048/4096, AES, SHA-1/256/384/512, ECC, 3DES	ISO 7816, ISO 14443	–
H19CR/MF	TMC THD89	58K / 2.4K	JC 2.2.1 / GP 3.0.4	CC EAL6+	RSA 2048/4096, AES, SHA-1/256/384/512, ECC, 3DES	ISO 7816, ISO 14443	–
H19CR/MP	TMC THD89	76K / 2.4K	JC 2.2.1 / GP 3.0.4	–	RSA 2048/4096, AES, SHA-1/256/384/512, ECC, 3DES	ISO 7816, ISO 14443	ePass2003

📦 Deployment Use Cases

• 🔐 Secure Workstation Login via Smart Card or FIDO Token
• 📧 Secure Email & File Encryption via PKI Certificates
• 🚪 Contactless Entry for Facilities and Buildings
• 📲 NFC Login for Mobile Devices (Android / iOS Apps)
• 🌐 Passwordless Web Login via WebAuthn/FIDO 2

---

📣 Call to Action

Secure Your Digital Identity with AFTINDIA ePass Smart Cards
Streamline your identity management with one ePass Security Card that does it all—FIDO, PKI, NFC access, and certified security.

👉 Request a demo or enterprise pricing – contact@aftindia.in
🌐 Visit: https://www.aftindia.in

---
