R502-Dual Interface Smart Card Reader Powerful 2in1 Reader for sale

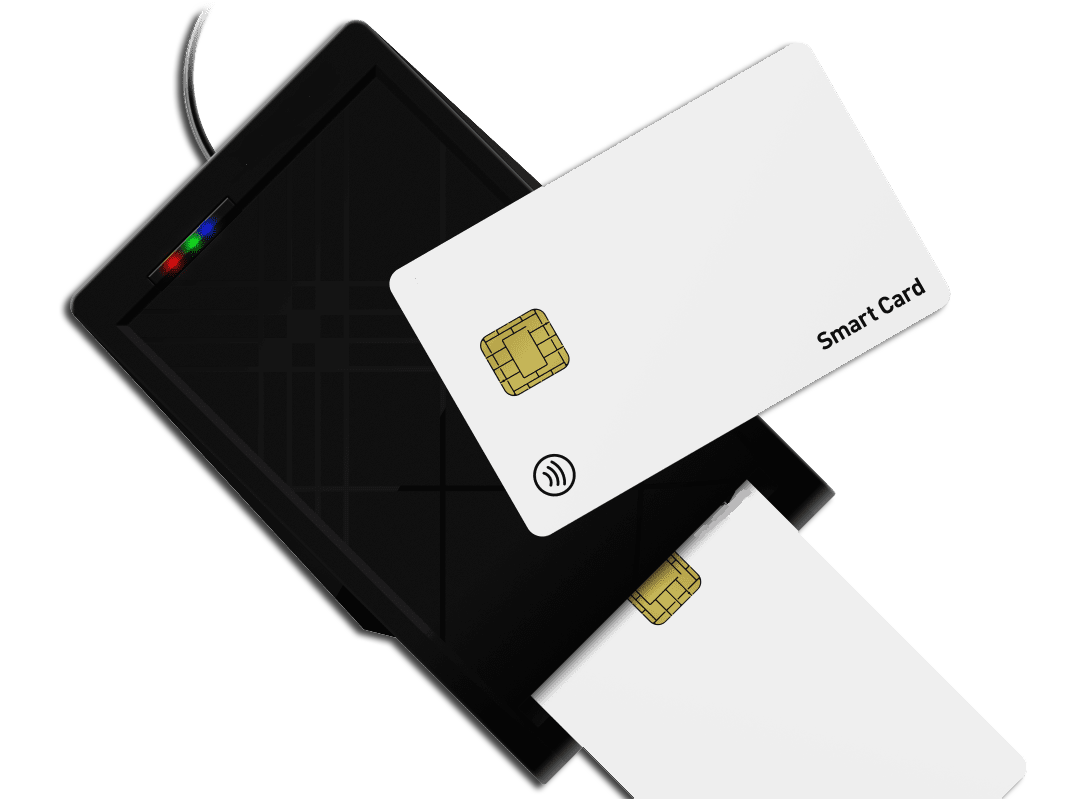

R502-Dual Smart Card Reader
- Dual-interface: contactless and contact smart card reader
- Supports Mifare, Felica, and GSM 11.11 SIM cards
- USB 2.0, CCID & PC/SC compliant
- Secure firmware with encryption & anti-reverse analysis
- Compatible with Windows, Linux, macOS, Android OTG
- Ideal for e-Government, banking, PKI & access control
- CE, FCC, RoHS, EMV Level 1 certified
R502-Dual Smart Card Reader | Contact & Contactless | NFC, MIFARE, ISO – Secure Digital Transactions
R502-Dual Interface Card Reader for Contact and Contactless Smart Card Reader Applications
The R502-Dual Smart Card Reader is a high-performance CCID dual interface smart card reader that supports both ISO 7816 contact smart cards and ISO 14443 contactless cards, including Mifare® and Felica® standards. Built for digital security, it is the preferred solution for secure authentication in e-Government, e-Payment, e-Healthcare, and enterprise-level access control systems.
About this item
- Full speed USB 2.0 standard
- Power supply by USB, the usb interface must be provided 120mA current when insert card
- The maximum current less than 100mA (no smartcard insert)
- Accordance with CCID standard to do develop
- Contact card
R502-Dual Smart Card Reader | Contact & Contactless | NFC, MIFARE, ISO 7816
R502-Dual Smart Card Reader supports ISO 7816 & ISO 14443, NFC, MIFARE, FeliCa. High-security, CCID-compliant, driverless smart card reader for payment and authentication.
Dual-Interface Smart Card Reader – One Reader for All Use Cases
The R502-Dual Interface Smart Card Reader is a multifunctional smart card reader combining contact and contactless technologies into a single high-security device. Designed for payment systems, identity authentication, access control, and enterprise security, it offers seamless interoperability across global standards and operating systems.
This dual-mode smart card reader eliminates the need for multiple devices by supporting both ISO 7816 contact cards and 13.56 MHz contactless/NFC cards, making it ideal for modern hybrid environments.
Supported Standards & Card Technologies
The R502 Dual-Interface Smart Card Reader offers broad international compatibility:
Contact Card Standards
- ISO/IEC 7816-1, 7816-2, 7816-3, 7816-4
Contactless & NFC Standards
- ISO/IEC 14443 Type A & Type B
- ISO/IEC 18092 (NFC)
- MIFARE® 13.56 MHz
- FeliCa® protocol
- NFC-A / NFC-B
- VHBR protocol support (vR504 model)
Supports all major 13.56 MHz NFC cards, ensuring global deployment readiness.
Designed for Payment & Authentication Applications
The R502-Dual Interface Smart Card Reader is purpose-built for payment systems and secure authentication domains, including:
- Digital identity & e-ID systems
- Banking & financial services
- Secure login & PKI authentication
- Government ID programs
- Healthcare systems
- Enterprise access control
Its composite multifunction design allows a single reader to serve both payment processing and identity verification use cases efficiently.
High-Security Hardware Architecture
Security is engineered at the hardware level to meet enterprise and government requirements:
- High-security chipset
- Built-in short-circuit protection
- Over-voltage protection
- Encrypted firmware architecture
- Secure encrypted firmware upgrade mechanism
This hardware-centric security approach ensures tamper resistance, data integrity, and long-term reliability.
Major Platform & OS Compatibility
The R502-Dual Interface Smart Card Reader is a true driverless CCID device, offering wide operating system support:
- Windows
- Linux
- macOS
- Unix
- Android (via OTG)
Full CCID compliance ensures plug-and-play deployment without proprietary drivers, reducing integration costs and deployment time.
Worldwide Certifications & Compliance
With multiple international certifications, this smart card reader delivers top-tier functionality, performance, and compliance, making it suitable for global projects and regulated industries.
Flexible Customization Options
To support OEM, enterprise branding, and large-scale deployments, flexible customization is available:
Custom Printing & Engraving
- Logo printing
- Laser engraving
- Fully customizable casing design
Reader Module Availability
- Full-function smart card reader module
- Ideal for embedding into kiosks, terminals, or custom hardware
Packaging & Branding
- Customized packaging solutions
- Value-added service options
Why Choose the R502-Dual Interface Smart Card Reader?
- Dual-interface contact & contactless support
- NFC, MIFARE, FeliCa compatibility
- High-security hardware design
- CCID-compliant & driverless
- Cross-platform OS support
- Ideal for payment & authentication
- Customizable for OEM & enterprise use
Request More Information
For detailed specifications, technical documentation, pricing, bulk orders, or customization options, please contact our sales team.
We will be pleased to assist with quotations and integration support for your smart card reader requirements.
⚙️ Key Features
- USB 2.0 Full Speed Device
- Dual Interface: Supports contact (ISO 7816 T=0/T=1) and contactless (ISO 14443 A/B) cards
- Supports Mifare® S50/S70/Ultralight C & Felica® Cards
- GSM 11.11 SIM Card and SAM Slot Support
- PC/SC & CCID Compliant
- Firmware Encryption & Upgradability
- Secure Digital Signature & PKI Applications
- Cross-Platform Support: Windows, macOS, Linux, UNIX, Android (OTG)
🧩 Applications
- e-Government & e-ID
- e-Banking & Digital Payments
- PKI-Based Authentication
- Access Control Systems
- e-Passports & e-Healthcare Cards
- SIM Card Management (GSM 11.11)
📊 Technical Specifications
| Category | Details |
|---|---|
| Model | R502-Dual C9 |
| Interface | USB 2.0 Full Speed |
| Power Supply | 5V DC (via USB) |
| Supply Current | < 100mA (No Card Inserted) |
| Supported Contact Cards | ISO7816 T=0, T=1 (Class A, B, C), GSM SIM (SAM Slot) |
| Contactless Cards | ISO 14443 A/B, Mifare Classic, Ultralight C, Felica |
| Card Frequency | 13.56 MHz (Contactless), 4 MHz (Contact) |
| Card R/W Speed | 106 kbps – 848 kbps (Contactless), 10753–688172bps (Contact) |
| Operating Distance | Up to 10 cm (Contactless) |
| Dimensions | 120 x 80 x 25.6 mm |
| Cable | Fixed, 1.5m USB Type-A |
| Indicators | Red, Green, Blue LEDs |
| Weight | 128g |
| Material | ABS + PC |
| Durability | 300,000 insertions |
| Certifications | CE, FCC, RoHS, EMV Level 1, BSMI, etc. |
| Operating Temp. | 0°C to 60°C |
| Storage Temp. | -20°C to 85°C |
| Humidity | ≤ 90% (non-condensing) |
| MTBF | 500,000 hours |
| OS Compatibility | Windows, Linux, macOS, Android (OTG) |
🛠️ Built-in Security Mechanisms
- Firmware Encryption with Anti-Reverse Analysis
- Short Circuit & Over-Voltage Protection
- Electrostatic Discharge (ESD) Protection
- Customizable UID & Firmware
📦 OEM/ODM Options
Available for bulk or enterprise needs with customization for:
- Logo printing
- Firmware
- Casing color
- Packaging
🛒 Order Now or Request a Demo
Need a secure and versatile smart card reader?
Click below to buy or contact our team for custom integrations and bulk pricing.
What is the R502-Dual Interface Smart Card Reader (R502 C9)?
The R502-Dual Interface Smart Card Reader is a 2-in-1 USB smart card reader that supports both contact smart cards (Class A, B, C) compliant with ISO 7816-1/2/3 (T=0, T=1) and contactless smart cards compliant with ISO 14443 Type A and Type B, enabling secure global smart card authentication.
What applications is the R502 smart card reader used for?
It is widely used for eID and national ID systems, banking and financial services, PKI authentication, digital signatures, access control, NFC applications, and two-factor authentication (2FA) across international markets.
Does the R502 support USB Type-C?
Yes. The standard model includes a fixed USB Type-A cable, and an optional USB Type-C smart card reader version is available for modern devices.
What security features does the R502 reader offer?
The R502 includes extended APDU support, UID management, encrypted firmware, secure firmware upgrades, and built-in short-circuit and over-voltage protection, ensuring reliable and secure smart card operations.
Is the R502 compatible with global smart card standards?
Yes. The R502 is fully compliant with international ISO smart card standards, making it suitable for worldwide deployment in government, enterprise, and commercial smart card systems.
Is firmware upgradable?
Yes, the firmware supports encrypted upgrades and is secure against reverse engineering.
Can it be used on Android devices?
Yes, it is compatible with Android OTG-enabled devices.
Is there SAM slot support?
Yes, the reader includes a SAM slot compatible with GSM 11.11 SIM cards.
🔷 Internal Linking Suggestions
R502-Dual CCID Smart Card Reader – High-Performance Dual Interface | Mifare, ISO7816 & ISO14443 Support
The AFTINDIA’S Feitian R502 USB Smart Card Reader is designed to support both contact and contactless smart cards, making it a versatile solution for secure authentication and system integration. Based on the CCID driver, the R502 is fully compliant with ISO 7816 contact cards and ISO 14443 contactless cards, including those that follow the Mifare standard.
Questions? Contact Sales for R502 Dual-Interface Smart Card Reader
This R502-Dual CCID Smart Card Reader features firmware upgrade capability, ensuring long-term reliability and adaptability. The R502 is ideal for applications in electronic payment, ID Authentication, E-Commerce, E-Payment, Information Security and Access Control, e-commerce, financial services, identity verification, and access control systems, especially in environments requiring high security. Developed by Feitian Technologies, the R502 offers a robust and efficient solution for smart card-based authentication across various industries.
