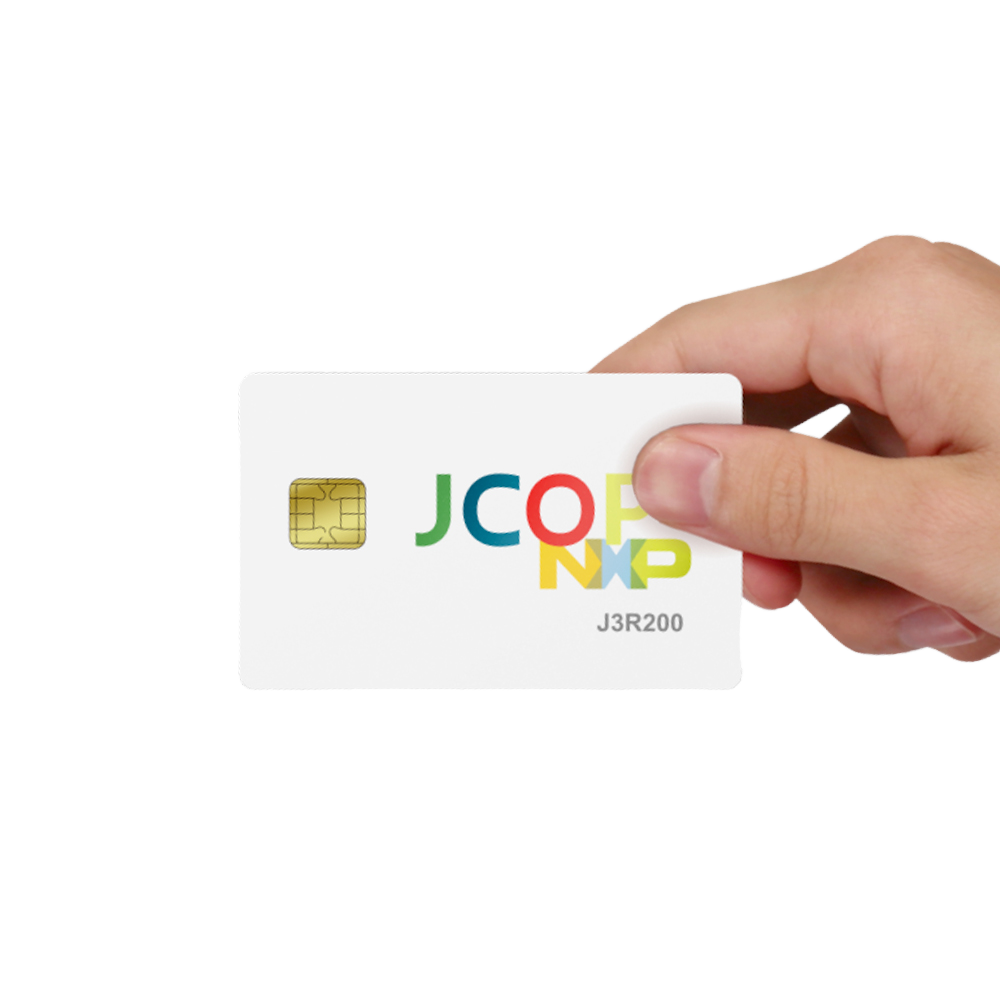

NXP JCOP4 P71 Java Card 3.0.5
NXP JCOP4 P71 Java Card 3.0.5 – most popular NXP JCOP 4 Java Card in Banking Application Smart Card
NXP JCOP4 P71 Java Card 3.0.5 – Buy JCOP4 P71 SeclD Payment Dual Interface Support SHA 256 ECC 521 RSA 4096 Smart Card JavaCard J3R150 J3R180 J3R200.
JavaCard J3R200 J3R150 J3R180 NXP Jcop 4 P71 SeclD Payment Dual Interface Support SHA 256 ECC 521 RSA 4096 Smart Card JavaCard J3R150 J3R180 J3R200
Specification of NXP JCOP4 P71 Java Card 3.0.5
The functions marked * are not supported by default. If you need these functions, please contact us before placing order NXP JCOP4 P71 Java Card 3.0.5.
If you don’t need the NXP JCOP4 P71 Java Card 3.0.5 card to support DESFire EV2 4K, the user available NVM Size can be up to 169K.
| Model Name | JCOP J3R200 / J3R180 |
| OS Certification | FIPS 140-2 Level 3 |
| CC EAL6+ | |
| Chip Certification | CC EAL6+ |
| Secure box | Yes |
| CPU | 8bit |
| Physical Storage | |
| NVM Type | |
| Total NVM Size | 210K |
| Total RAM Size | 8K |
| User NVM Size | 85K |
| User RAM size | 3K |
| Algorithm | |
| RSA 2048 | Yes |
| RSA 4096 | Yes |
| AES | Yes |
| SHA-1 | Yes |
| SHA-256 | Yes |
| SHA-384 | Yes |
| SHA-512 | Yes |
| MD5 | No |
| 3DES (ECB, CBC) | Yes |
| KOREAN SEED | Yes |
| ECC FP | 160 bits to 521 bits |
| Standard Compliance | |
| Java Card™ 3.0.5 | Yes |
| Java Card™ 3.0.4 | Yes |
| GlobalPlatform 2.3 | Yes |
| GlobalPlatform 2.2.1 | Yes |
| EMV ICC Specification for Payment Systems 4.3 | Yes |
| EMV Contactless Specifications for Payment Systems (Book D) 2.6 | Yes |
| EMVCo | Yes |
| Communication Protocol | |
| ISO7816 T=0* | No(Customizable) |
| ISO7816 T=1 | Yes |
| ISO14443 T=CL Type A | Yes |
| ISO14443 T=CL Type B | No |
| Contactless VHBR | 3.2Mbits/s |
| Mifare* | No (Customizable) |
| DESFire EV2 4K | Yes |
| JCRE Features | |
| APDU Buffer Size | 261 bytes to 2048 bytes |
| Transaction Size | 2048 up to 64K |
| Extended APDU | Yes |
| Logical Channels | 1(Default) / 4* |
| GP Secure Channel Protocol | SCP01* / SCP02*/ SCP 03(Default) |
| Garbage Collector | Yes |
| Applet deletion | Yes |
| Product Configurations – Add Ons(Optional) | |
| Module | Match On Card(MOC) ID3 Neurotechnology* |
| MIFARE DESFire EV2 4K | |
| MIFARE Plus EV1 4K* | |
| Application* | PIV |
| FIDO | |
| OTP | |
| ChipDoc Suite | |
| eDoc Applet Suite | |
| MasterCard M/Chip | |
| VISA VSDC2.9 | |
| CPA1.0 | |
| DPAS v.10 | |
| AMEX 4.4/Expresspay 4.3 | |
| Customization | |
| Feature | Dual Interface,Contact,Contactless |
| Card Printing | 4/6 colours Offset Printing,UV Printing |
| Card Surface Process | Glossy Finish, Matte Finish, Other Card Processing Technology |
| (Only available for Offset Printing ) | |
| Magnetic Stripe | Hi-Co, Lo-Co |
| Others | ATR |
| SIM-size Cutting | |
| Jave Token -Java Card in USB Key Format | |
| One Time Password Card | |
| Application | |
| e-Government,Banking and Finance,Public Transportation, Access Control,Mobile,Loyalty Card,PIV,FIPS | |
| Customized support | Customized logo |
