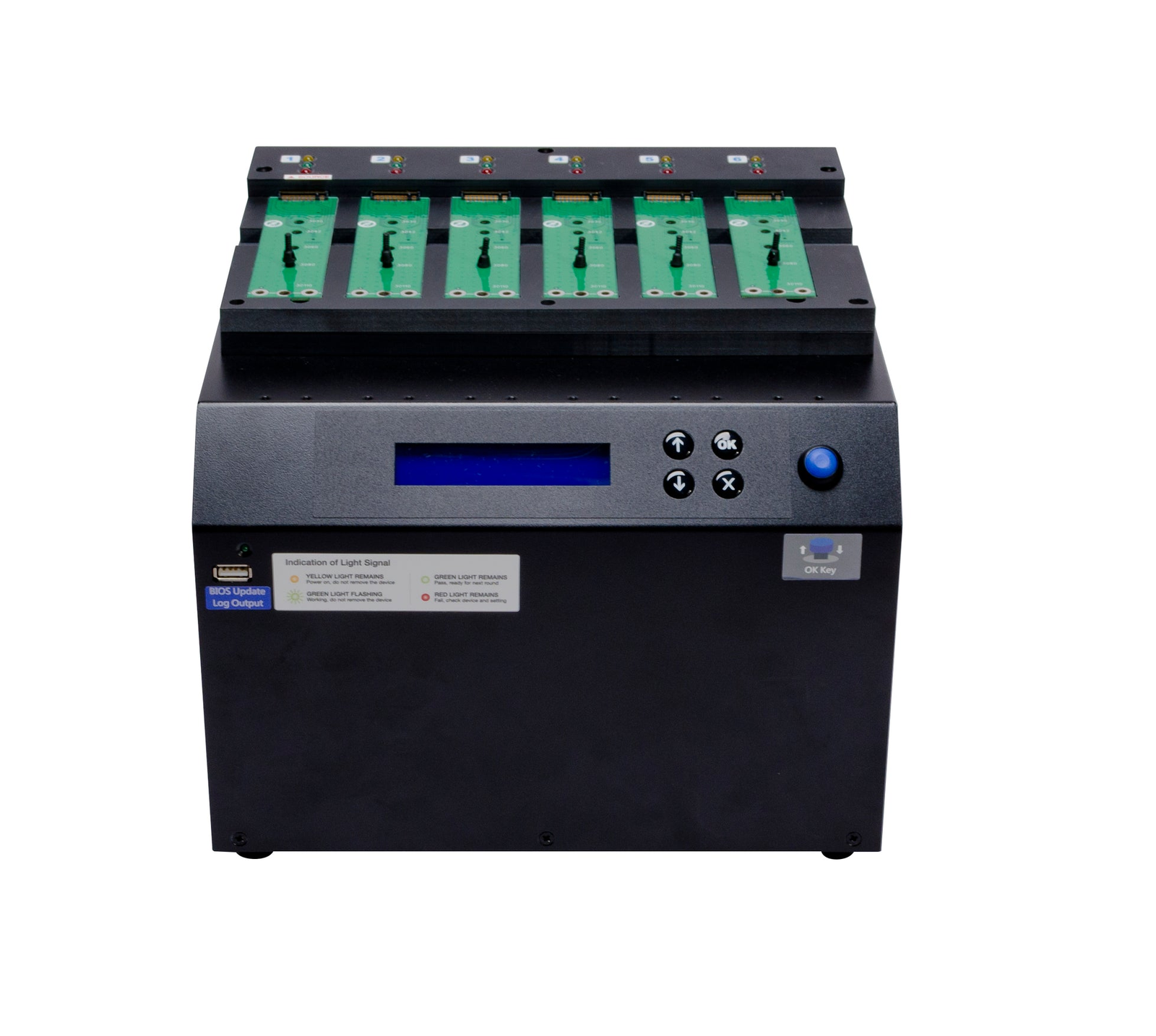

PE600 – High Speed PE Series
PE600 – NVMe PCIe SSD(M.2/U.2) Duplicator – 24GB/min
1 to 5 NVMe PCIe SSD (M.2 U.2) Duplicator and Sanitizer (PE600)
- Model: PE600
- Speed transfers up to 24 GB per minute.
- Systems & files copy mode supports Windows (FAT16/32/64, NTFS), Linux (ext2/ext3/ext4/LVM) and Mac (HFS, HFS+, HFSX.)
- Data Sanitization: Quick Erase, Full Erase, DoD Erase and DoD Erase+Compare.
- Log report management records all task details for better enhanced management.
- Cable free connection for easier M.2 connection and disconnection.
- Supports M key and B+M key for M.2 PCIe devices.
- Targets: 1 to 5
- Copyspeed: Standard 24GB/min
- Qty: 1
- SKU: UR-PE600
- Price: Contact us
The new PE600 Series M.2 PCIe SSD duplicator is designed to meet diverse production demands, offering a range of models with multiple port configurations. Engineered for maximum efficiency, 1 to 5 PCIe SSD M.2 Duplicator (PE600) delivers ultra-fast duplication speeds of up to 60 GB per minute—maintaining top performance regardless of the number of connected targets. Advanced protocol detection capabilities streamline workflow and improve overall productivity. Additionally, its integrated source disk image management system simplifies image handling and minimizes the risk of human error, PE600 – High Speed PE Series is an ideal solution for high-volume SSD duplication tasks.
U-Reach NVME M2 SSD Cloner PE600 PE Series
PE600 PE Series: NVMe M.2 Duplicator
Product Description PE Series
The PE600 PE series NVMe M.2 duplicator is a standalone copy system designed for India and international markets.
It works without a PC and there is no need for additional software, making it an ideal high-speed data duplication solution for businesses in India and global enterprises.
You can handle M.2/U.2 & U.2 NVMe/SATA devices in one system, ensuring wide compatibility for data centers, IT professionals, and storage solutions worldwide.
This M.2 copier can be used as a copy system or an eraser, offering secure data wiping and efficient SSD duplication for India, Asia, Europe, the USA, and international markets.
Specifications – NVMe M.2 & U.2 Duplicator | High-Speed SSD Duplication System
| Category | Details |
|---|---|
| Bandwidth Performance | Up to 24GB/min high-speed NVMe SSD duplication for India and international data centers (Actual performance depends on device transfer speed) |
| Supported Formats | Quick Copy (System & Files): FAT16/32, exFAT, NTFS (Windows), Linux Ext2/Ext3/Ext4, Mac HFS/HFS+/HFSX |
| Whole Device Copy: Supports all formats including proprietary systems for enterprise SSD duplication worldwide | |
| Supported Capacity | Supports 18TB+ large-capacity SSDs and storage devices |
| Supported OS | Compatible with Windows, macOS, Linux, and proprietary systems |
| Operation Mode | Standalone FPGA-based NVMe duplicator (No PC required) |
| Copy Modes | Quick Copy, All Partitions, Whole Device, Percentage Copy for flexible SSD cloning solutions |
| Verification (Compare) | Bit-by-bit data verification ensuring accurate and reliable duplication |
| Sanitization Modes | Quick Erase, Full Erase (NIST 800-88), DoD Erase (DoD 5220.22-M), Secure Erase for certified data wiping solutions in India & globally |
| Log Manager | Advanced log report management system for quality control and audit tracking |
| Additional Features | Skip bad sectors, copy/skip unknown formats for efficient data recovery and duplication |
| Image Management (Optional) | Transfer multiple disk images from PC to duplicator storage |
| Compatible Devices | Native: M.2 (NGFF) M Key & B+M Key |
| Optional Adapters: SATA, U.2 (SFF-8639), Mini PCIe, mSATA, CFast, etc. | |
| Supported Protocols | NVMe, AHCI, SATA |
| Partition Support | Supports GPT, MBR, and advanced storage formats |
| LCD Display | 2×20 Backlit LCD display for easy monitoring |
| LED Indicators | 3 LEDs per port: Power (Yellow), Pass (Green), Fail (Red) |
| Control Panel | 4-button control system (▲, ▼, OK, ESC) |
| Power Requirements | Universal power support: 115V / 230V AC, 50/60Hz |
| Operating Temperature | Working: 0°C to 60°C |
| Storage Temperature | -20°C to 85°C |
| Humidity Range | Working: 20%–80%, Storage: 5%–95% |
| Certifications | FCC, CE, RoHS, REACH certified for global compliance |
*Specifications subject to change without notice.
Features and benefits
4 Different Copy Modes
The U-Reach PE600 PE series NVMe copy machine offers 4 smart copy options for high-speed SSD duplication in India and international markets.
You can easily choose the right data duplication process based on your project requirements, making it ideal for IT professionals, data centers, and businesses worldwide.
(Picture shows the data on the master in blue and the areas that will be copied in red for accurate and efficient cloning.)
Media Sanitization – M.2 Eraser to Wipe Data from M.2, U.2, U.3 and Other Formats
If you are an expert in HDD & SSD duplication, you will understand the importance of professional media sanitization and secure data erasure for India and international markets. With our PE600 PCIe NVMe duplicator, it is very easy to erase sensitive data quickly and efficiently.
We offer multiple data wiping modes to ensure safe, certified, and permanent data removal, making it ideal for data centers, IT professionals, and enterprise storage solutions worldwide.
2 Different Speed Models – NVMe M.2 Duplication System for India & International Markets
We offer 2 PE models of our PE600 M.2 NVMe duplication system with different high-speed copy performance to suit India and global enterprise requirements.
- The standard model PE600 delivers a copy speed of up to 24GB per minute, making it ideal for reliable and efficient M.2 duplication workflows.
(copy-speed-of-standard-m2-duplication-system-24GB-per-minute) - The Highspeed (-H) model provides an ultra-fast copy speed of up to 60GB per minute, offering one of the fastest NVMe duplication solutions in the market for PCIe, M.2, and U.2 formats.
(u2-copy-speed-fastest-in-the-market-m2-nvme-pcie-format-copy)
Please carefully check the media type (M.2, U.2, NVMe, PCIe SSD) you are using and select the appropriate model based on your performance requirements, whether for India-based IT operations or international data duplication projects.

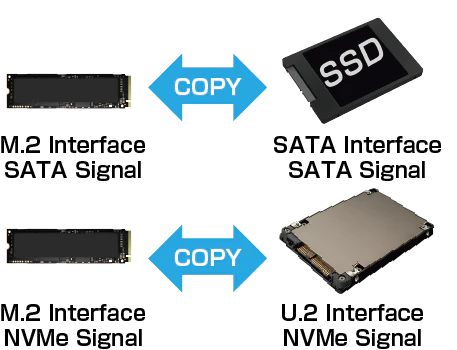

Cross Interface Duplication – NVMe M.2 Copy System for India & International Markets
One of the key features of the PE600 PE series NVMe M.2 duplicator is cross interface duplication, designed for flexible data cloning workflows in India and global IT environments.
You can use our PE600 PE copier to perform cross-interface data transfer between storage types, enabling efficient and professional SSD duplication and migration tasks. This means you can copy from M.2 SATA interface to SATA interface, supporting both SATA signal and NVMe signal-based workflows, depending on your system configuration.
Supported Interfaces – PCIe Copy Machine Adapters for India & International Markets
Our PE600 PCIe copy machine supports a wide range of storage interfaces and media formats, making it a flexible solution for SSD duplication in India and global data environments.
With multiple adapter interfaces for PCIe copy machines, you can easily work across different storage technologies and formats, ensuring maximum compatibility for enterprise and industrial applications.
The PE600 supported formats include:
- Native M.2 (NGFF) – supporting NVMe, AHCI, SATA
- U.2 (SFF8639) – supporting NVMe, AHCI
- SATA – standard SATA SSD/HDD compatibility
- PCIe – high-speed NVMe duplication support
- BGA SSD – compact NVMe/AHCI storage modules
You can handle different media formats with a wide range of additional adapters such as TB1587V2, TB1589V2, TB1568, and TB1616, giving you powerful flexibility for M.2, U.2, SATA, PCIe, and BGA SSD duplication workflows.
The image above shows the available interface options and adapter possibilities, helping users choose the right configuration for professional data duplication and storage management projects worldwide.

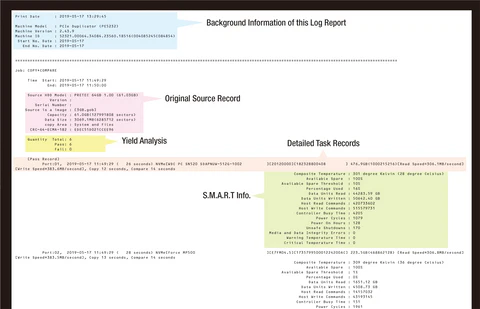

Log Report – Features for M.2, U.2 & SATA Copy Machinery
The U-Reach PE600 PE series NVMe M.2 duplicator includes an advanced log report system designed for professional data duplication workflows in India and global production environments.
Use the log report feature for analysis, internal auditing, and external quality management in SSD duplication operations. Each copy or erase process is automatically saved in the M.2 duplicator system, ensuring full traceability.
You can easily export log reports to your computer or download them via USB thumb drive, making data management flexible and convenient for IT departments, data centers, and industrial applications worldwide.
This system is the perfect tool to maintain a clean and accurate production report for every operation. If you need to verify individual serial numbers later, you can simply use the built-in search function for fast and reliable tracking across M.2, U.2, and SATA duplication processes.
Product Summary – NVMe M.2 & U.2 Duplication System for India & International Markets
The PE600 PE series NVMe M.2 duplicator is one of the best high-performance duplication hardware solutions for M.2 and U.2 devices in the market, widely used in India and global enterprise environments.
It is a very powerful unit with a wide range of advanced SSD duplication and data management features, designed for IT professionals, data centers, and industrial storage applications worldwide.
We also offer more economical duplication series with reduced feature sets, as well as models with separate NVMe and SATA ports to meet different technical requirements.
Yes, we provide the right data duplication solution for almost every demand and budget, whether for basic SSD copying, professional media sanitization, or high-speed enterprise NVMe duplication workflows across India and international markets.
Impeccable High Speed
The U-Reach High-Speed PE600 Series PCIe SSD Duplicator delivers exceptional performance with a consistent copy speed of 24GB per minute across all drives—without any drop in speed, even as the number of targets increases. Engineered for high-efficiency duplication, it’s an ideal solution for manufacturers and production environments requiring fast, reliable, and scalable SSD cloning.
No waiting time required for duplication
Each round of duplication is completed with maximum efficiency, allowing the next batch to begin immediately—no waiting or system reboot required. This seamless workflow significantly boosts productivity in high-volume environments.
Native Support NVMe and SATA Protocols
The PCIe Series with M.2 interface utilizes native NVMe and SATA protocols, eliminating the need for converter chips. This direct data transmission enhances compatibility and ensures more reliable, efficient duplication performance.
FPGA-based Platform
Built with an industrial-grade FPGA architecture, the duplicator supports seamless cross-interface and cross-protocol duplication—without the need to restart the system after each round. For optimal results during cross-protocol duplication, using a data disk is recommended. When duplicating an OS, it’s best to use target devices with the same protocol to ensure proper system boot functionality.
Intelligent Duplication Modes
Our PCIe SSD duplicator offers a diverse of duplication modes. The user may select the appropriate mode based on application demand.
Illustration of Copy Modes
During the duplication process, data areas are visually indicated in blue, while actively copied areas are highlighted in red. The overall duplication time may vary depending on the speed capabilities of the hard drive’s controller chip.
Sanitization Methods
Source Management System
Administrators can use dedicated software to store image files on a central computer for streamlined management. When needed, these image files can be quickly transferred to the duplicator for production. This centralized approach is specifically designed for manufacturing environments, making source management more efficient and significantly reducing the risk of human error.

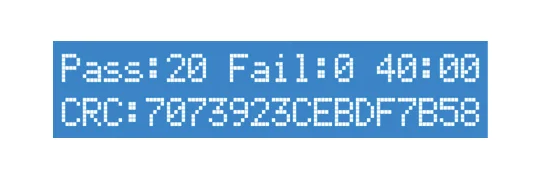

Double Data Verification: Compare + CRC Checksum
In addition to bit-for-bit comparison, the PEH Series duplicator employs CRC (Cyclic Redundancy Check) as an advanced error-detection method to ensure data accuracy. After each duplication round, users can simply verify that the CRC value displayed on the duplicator’s LCD matches, confirming a successful and error-free copy.
High Compatibility
- Quick copy mode supports Windows (FAT16/32/64), Linux (ext2/ext3/ext4/LVM), and Mac (HFS/HFS+/HFSX) formats.
- Whole media copy mode supports all system and proprietary formats.
- Supports various brands.
- Designed to support 18TB+ capacities.
- Supports MBR and GPT partitioning.
U-Reach M.2 Duplicator PE-Series
PE Series M.2 NVMe Duplicator

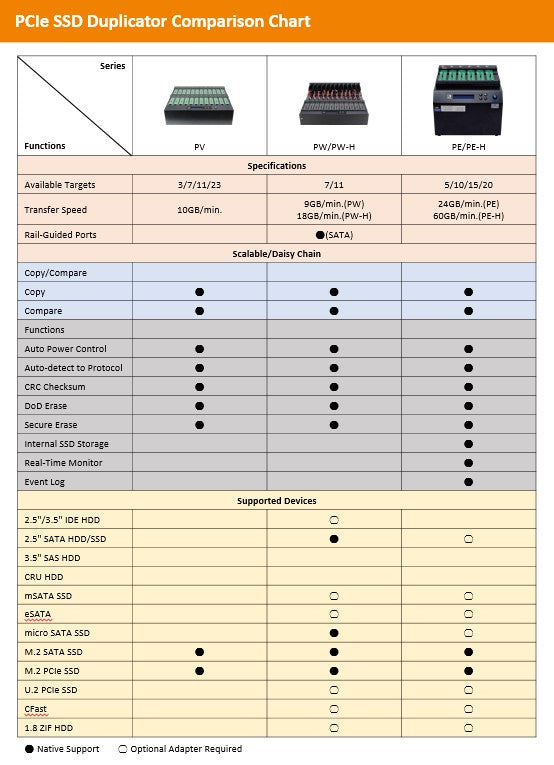

PCIe SSD Duplicator Comparison Chart
Buy PE600: NVMe M.2 Duplicator – 24GB/min Copy Speed For Your Company?
Buy PE600 PE Series NVME M2 SSD Cloner Duplicator Copier Replicator Machine | Ultimate High-Speed 24GB/min. Learn more about the solutions AFT INDIA offers to find the best fit NVMe PCIe SSD(M.2/U.2) Duplicator solution for your use case.
